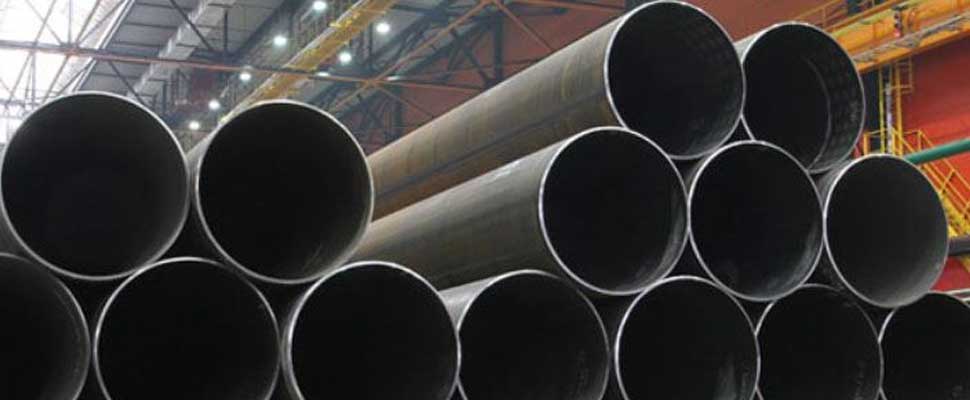

EN 10219 S275JOH Pipe
EN 10219 S275JOH Pipe, EN 10219 S275JOH Pipe Supplier, EN 10219 S275JOH Bars, EN 10219 S275JOH Pipe Supplier in Mumbai, EN 10219 S275JOH Pipe Supplier in India, EN 10219 S275JOH Pipe Manufacturer, EN 10219 S275JOH Pipe Exporter in India.
Tricon Steel & Alloys is the largest supplier and manufacturer of EN 10219 S275JOH bars, esteemed for their wide range of utilization across diverse industries. From chemical processing and petrochemicals to pharmaceuticals and beyond, these bars emerge as an exemplary selection, highlighting their durability in pivotal applications.
A European standard specification for fine-grain, non-alloy steel cold-formed and welded structural hollows is EN 10219 S275JOH. This classification includes several characteristics that are essential for structural uses. S275JOH is a designated steel grade in this standard suitable for structural applications and has a minimum yield strength of 275 megapascals. The adaptability of EN 10219 S275JOH is one of its main advantages; it provides an affordable option for various construction projects, such as infrastructure, buildings, bridges, and more.
EN 10219 S275JOHboasts a versatile range of applications thanks to its remarkable strength-to-weight ratio and structural reliability. Its utility spans multiple industries, including construction, mechanical engineering, automotive, and transportation. Widely employed in load-bearing structures, support columns, frames, and components demanding robustness, it stands out for its cold-formed properties, enabling precise dimensional accuracy and enhanced aesthetics. This makes it a favoured option for architectural endeavours as well.
EN 10219 S275JOH Pipe Manufacturer in Mumbai, EN 10219 S275JOH Welded Pipe, EN 10219 S275JOH Pipe Manufacturer in India, EN 10219 S275JOH Pipe Exporter, EN 10219 S275JOH Seamless Pipe, EN 10219 S275JOH Pipe Exporter in Mumbai.
Testing on EN 10219 S275JOH guarantees structural integrity and performance and assures compliance with strict quality standards. Tests, including tensile strength, yield strength, and elongation, are carried out to evaluate its mechanical properties. Flaws or defects are found in non-destructive testing, like ultrasonic and visual inspection. In destructive testing, chemical composition analysis guarantees adherence to specified elemental compositions.
EN 10219 S275JOH is packed meticulously to ensure safe transportation and storage. Typically, the sections are bundled together and securely strapped to prevent movement during transit. Protective wrapping, such as plastic or paper, shields the steel from moisture and corrosion. Labelling with relevant information, including grade, dimensions, and batch numbers, also facilitates easy identification and traceability
EN 10219 S275JOH Pipe Specifications
| Standard | AISI, DIN, EN, GB, IS, JIS, ASTM, ASME Pipe |
| EN 10219 S275JOH Carbon Steel Seamless Pipe Size | 4 to 219mm W. T.: 0.5 to 20mm |
| Bs En 10219 S275joh Welded Pipe Size | 5.0 mm – 1219.2 mm |
| En 10219 S275joh EFW Pipe size | 5.0 mm – 1219.2 mm |
| Steel EN 10219 S275JOH Tube Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| Carbon Steel EN 10219 S275JOH Pipe Schedule | SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Carbon EN 10219 S275JOH Steel Seamless Tube Size | 3.35 mm OD To 101.6 mm OD |
| Steel EN 10219 S275JOH Welded Tube Size | 6.35 mm OD To 152 mm OD |
| EN10219 S275JOH Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| S275joh En 10219 Carbon Steel Tube wall thickness | 0.020" –0.220", (special wall thicknesses available) |
| Carbon Steel S275JOH EN 10219 Length | Single Random, Double Random, Standard & Cut length Pipe & Tube |
| Grade S275joh Steel Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
| En 10219 Gr S275joh Form | Round, Hydraulic, ‘U’ bent or Hollow,LSAW, Boiler, Straight Pipe, Clad Pipe, Rectangular, Square Pipe Etc |
| Bs En 10219 S275joh Type | Welded, Seamless, ERW, EFW, Fabricated Pipe, ‘U’ bent or Hollow, Hydraulic, LSAW, Boiler, Straight Tube, Tube Coil, Round, Rectangular, Square Tube etc |
| En 10219 S275joh Cold Formed End | Plain End, Beveled End, Treaded Pipe & Tube |
| EN 10219 S275JOH Carbon Steel Marking | All S275JOH EN 10219 Carbon Steel Seamless Pipes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| En 10219 Grade S275joh Application | Oil Pipe & Tube, Gas Pipe & Tube, Fluid Pipe & Tube, Boiler Pipe & Tube, Heat exchanger Tube |
| En 10219 S275joh Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| S275joh En 10219 Steel Specialize in |
|
| Material Test Certificates (MTC) | Material Test Certificates (MTC) as per EN 10204/3.1B, EN 10204 3.1 and
EN 10204 3.2, 100% Radiography Test Report, Raw Materials Certificate, Third Party Inspection Report, Fumigation Certificates, Heat Treatment Charts, En 10219 Gr S275joh Pipe HS Code Commercial Invoice, Form A for Generalized System of Preferences (GSP) |
| Manufacturers of En 10219 Grade S275joh Pipe |
|
| We can also cut, thread, and groove Carbon Steel S275JOH EN 10219 Pipe to meet your specifications. Pipe Dimension ANSI/ ASME B36.19, B36.10, B2.1 | |
EN 10219 S275JOH Pipe Manufacturing Process
The Rolling and Welding Stage
To begin our process, we first need to go through the rolling and welding stage. The EN 10253-1/2 is placed through a checking process and cut at the edges in this stage.
Cleaning and Warming Stage
The rolled EN 10219 S275JOH Pipe thus manufactured are cut to the required lengths depending upon the industrial demand.
Cold-Drawing Stage
Sometimes, the required size isn’t obtained when the steel is brought through the mill directly. When using the cold-drawing process, the desired size is achieved when the pipes and tubing are coated with oxalic and soap solution and dragged over die plugsâ€â€the oxalic and soap solution help reduce friction when going through the cold cycle.
The Finishing Process
The final process is the finisher. Once the process of manufacturing EN 10219 S275JOH Pipe and tubing is completed, you’ll now have to take them to a jet printer.
EN 10219 S275JOH Pipe Equivalent Material
| Steel grade |
Maximum CEV for
nominal thicknesses
≤40mm
|
|
| Steel name | Steel number | |
| S275JOH En 10219 Carbon Steel Seamless Pipes | 1.0149 | 0,40 |
EN 10219 S275JOH Pipe Chemical Composition
| Steel Grade | Type of DeÂÂ-Oxidation a |
% by mass, maximum |
||||||
| Steel Name | Steel Number | C | Si | Mn | P | S | N b | |
| En 10219 S275JOH Tube | 1.0149 | FF | 0,20 |  | 1,50 | 0,035 | 0,035 | 0,009 |
EN 10219 S275JOH Pipe Mechanical Properties
| Steel Grade | Minimum yield strength ReH MPa |
Tensile strength Rm MPa |
Minimum elongation A d % |
Minimum impact energy KV e J |
|||||
| Specified thickness mm | Specified thickness mm |
Specified thickness mm |
at test temperature of |
||||||
| Steel Name | Steel Number | ≤16 | > 16 ≤ 40 | < 3 | ≥ 3 ≤ 40 | ≤ 40 | -20°C | 0°C | 20°C |
| Carbon Steel S275JOH EN 10219 Pipes | 1.0149 | 275 | 265 | 430-580 | 410-560 | 20 c | – | 27 | – |
Buy High Quality EN 10219 S275JOH Pipes.
Give us a call or send us an email to discuss how we can help you build your business. Working with such an esteemed client as you will make us happy.
Please Call On +91 9892770720 Or Mail Us On info@triconsteels.com
Types Of EN 10219 S275JOH Pipe
EN 10219 S275JOH+AR Seamless Pipe
EN 10219 S275JOH Welded Pipe
EN 10219 S275JOH ERW Pipe
EN 10219 S275JOH EFW Pipe
We also supply EN 10219 S275JOH Pipe at the best price. You can check our latest EN 10219 S275JOH Pipe price list. Contact Tricon Steel & Alloys today for a best offer & competitive quotation Of EN 10219 S275JOH Pipe.
