Tricon Steel & Alloys is India's largest supplier, dealer, and manufacturer of Stainless Steel 317/317L Sheets, Plates, and Coils. These Products are robust and versatile materials widely used across various industries due to their exceptional properties. Composed primarily of chromium, nickel, and molybdenum.

SS 317L alloys offer superior corrosion resistance even in harsh environments, making them ideal for chemical, pharmaceutical, food, and marine applications. Adding molybdenum enhances their resistance to pitting and crevice corrosion, extending their lifespan and reliability.

One of the main features of stainless steel 317L is its high hardness and excellent toughness, ensuring durability under harsh conditions. They exhibit outstanding formability and weldability, making them easier to perform in complex structures. This versatility allows for producing desirable construction products, such as tanks, piping systems, heat exchangers and building materials.

Regarding applications, stainless steel 317 sheets are widely used in the chemical and petrochemical industries to prevent corrosion by chemicals and acids. They are necessary for reactors, storage tanks, distillation columns, etc. In addition, it is used in the pharmaceutical industry for chemical delivery systems, reactor vessels, chemical processing equipment, and more.

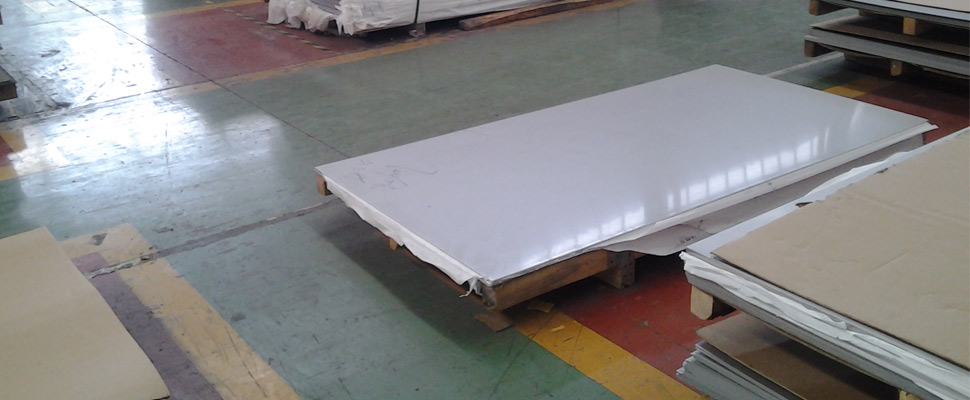

Stainless Steel 317 / 317L Sheets, Plates, Coils

Stainless Steel 317 Sheets adhere to industry standards such as ASTM A240/A480 and ASME SA240, ensuring quality, performance, and compatibility in various industrial applications. Quality assurance is important for stainless steel 317L plates. Therefore, stringent testing protocols are developed to ensure compliance with industry standards and specifications. These include mechanical testing such as tensile strength, elongation and hardness testing to ensure the quality of materials. Chemical analysis is performed to ensure the quality of the compound. At the same time, non-destructive methods such as ultrasonic testing and dye penetrating inspection detect surface defects or irregularities. Furthermore, corrosion testing is carried out to evaluate the material's resistance to various defects. The environment has ensured service efficiency.

317 Stainless Steel Sheets Specifications

Specifications ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911
Dimensions MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc
Size Range Cold Rolled : 0.5-6.4 mm
Hot Rolled : 3.0–10.0 mm
Thickness 0.3 mm to 120 mm
Width 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
International Standard ASTM A480
ASTM A959
ASME IID
EN ISO 9445
EN ISO 18286
EN 10051
EN 10088-1
ISO 15510
Tolerances (width / thickness EN 10258/ DIN 59381
EN 10151
EN 10088
Form Sheet, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, soft annealed, descaled, sheared, annealed
Finish 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, mirror etc.
Hardness Half Hard, Soft, Hard, Quarter Hard, Spring Hard
Value Added Service Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.
Profiling Plasma Plate Cutting
Laser Plate Cutting
Oxy-propane Flame Cutting

317L Stainless Steel Sheets, Plates, Coils Manufacturing Process

Reheating Furnace

A reheating furnace is a crucial component in the steel manufacturing process, particularly for hot rolling mills where sheets or slabs are heated prior to rolling.

Scale Breaker

A scale breaker, also known as a descaler, is a piece of equipment used in the steel manufacturing process to remove scale from the surface of hot-rolled steel products. Scale refers to the iron oxide layer that forms on the surface of steel when it is heated to high temperatures during the manufacturing process.

Finish Rolling

Finish rolling, also known as final rolling, is the last stage in the hot rolling process of steel or other metals. It involves reducing the thickness of the material to its final desired dimensions and achieving the required surface finish.

Skin Pass Mill

A skin pass mill, also known as a temper mill or a rolling mill, is a specialized type of rolling mill used in the steel or metal industry to improve the surface finish and mechanical properties of cold-rolled steel coils or sheets. It operates after the cold rolling process and before further processing or coating.

Sheets, Plates, Coils Manufacturing Process

Stainless Steel 317L Sheets, Plates, Coils Equivalent Material

GRADE WERKSTOFF NR. JIS UNS BS GOST AFNOR EN
SS 317 1.4449 SUS 317 S31700 - - - -
SS 317L 1.4438 SUS 317L S31703 - - - X2CrNiMo18-15-4

SS 317 Sheets, Plates, Coils Chemical Composition

Grade C Mn Si P S Cr Mo Ni Fe
SS 317 0.08 max 2.0 max 1.0 max 0.045 max 0.030 max 18.00 - 20.00 3.00 - 4.00 11.00 - 15.00 57.845 min
SS 317L 0.035 max 2.0 max 1.0 max 0.045 max 0.030 max 18.00 - 20.00 3.00 - 4.00 11.00 - 15.00 57.89 min

317L Stainless Steel Sheets, Plates, Coils Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
7.9 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

Buy High Quality ASTM A240 TP317 Stainless Steel Sheets.

Give us a call or send us an email to discuss how we can help you build your business. Working with such an esteemed client as you will make us happy.

Types Of Stainless Steel 317 Sheets, Plates, Coils

Shim Sheet

SS 317 Shim Sheet

Perforated Sheet

SS 317 Perforated Sheet

Coils

317 Stainless Steel Coil

Strips

317 Stainless Steel Strip

Hot Rolled Sheet

SS 317 Hot Rolled Sheet

Foils

Stainless Steel 317L Foils

Chequered Plate

SS 317 Chequered Plate

Cold Rolled Plate

SS 317L Cold Rolled Plate

We also supply 317 Stainless Steel Sheet at the best price. You can check our latest 317L Stainless Steel Plates price list. Contact Tricon Steel & Alloys today for a best offer & competitive quotation Of 317 Stainless Steel Coils.
