Tricon Steel & Alloys is a well-known inconel 718 Sheets, Plates, and Coils manufacturer and supplier. These products are crafted to meet industry standards, making them ideal for applications in diverse industries. Tricon Steel & Alloys delivers top-quality Inconel 718 products tailored to full industrial requirements and reinforces its reputation as a trusted supplier.

Inconel 718 Sheets, Plates, and Coils consist primarily of nickel (around 50-55%), chromium (17-21%), and iron (balance). Additionally, they contain smaller percentages of niobium (5-7%), molybdenum (2.8-3.3%), titanium (0.65-1.15%), and aluminum (0.2-0.8%). These precise compositions impart exceptional mechanical properties.

Inconel 718 Sheets exhibit impressive mechanical properties, with a tensile strength typically ranging from 1200 to 1400 MPa and a yield strength of approximately 1000 MPa. The density of Inconel 718 is around 8.2 g/cm³. In terms of thermal conductivity, it ranges from 6.1 to 11.1 W/m·K depending on the temperature and heat treatment.

Inconel 718 sheets and plates offer exceptional features, including high temperature and corrosion resistance. Their superior mechanical properties, such as high tensile and yield strength, ensure reliability under extreme conditions. Additionally, Inconel 718 Plates exhibits excellent weldability, allowing for ease of fabrication. With its versatility and durability, Inconel 718 is a preferred choice for components requiring resilience in harsh environments and critical performance requirements.

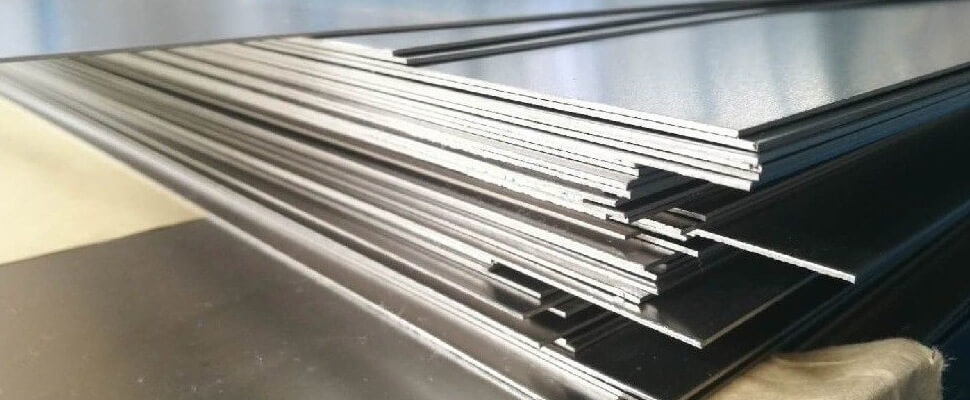

Inconel 718 Sheets, Plates, Coils

Tricon Steel & Alloys highly value quality, putting all our materials through extensive testing before delivery. The Hardness Test, Chemical Analysis, PMI Testing, Micro and MacroTest, Flaring Test, Pitting Resistance Test, and IGC Test are some of these tests. Invoices, packing lists, and a legally recognized Certificate of Origin are among the paperwork we offer for client satisfaction. We also provide a third-party inspection certificate for all our products.

Due to their exceptional properties, Inconel 718 Sheets, Plates, and Coils are used in high-temperature applications such as gas turbine components, jet engine thrust reversers, and combustion chambers. Inconel 718 Coils are also used in chemical processing, nuclear reactors, and the aerospace industries.

Inconel 718 Sheets Specifications

Specifications ASTM B670 / ASME SB670
Dimensions MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc
Size Range Cold Rolled : 0.5-6.4 mm
Hot Rolled : 3.0–10.0 mm
Thickness 0.3 mm to 120 mm
Width 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Tolerances (width / thickness EN 10258/ DIN 59381
EN 10151
EN 10088
Form Sheet, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, soft annealed, descaled, sheared, annealed
Finish 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, mirror etc.
Hardness Half Hard, Soft, Hard, Quarter Hard, Spring Hard
Value Added Service Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.
Profiling Plasma Plate Cutting
Laser Plate Cutting
Oxy-propane Flame Cutting

Inconel 718 Sheets, Plates, Coils Manufacturing Process

Reheating Furnace

A reheating furnace is a crucial component in the steel manufacturing process, particularly for hot rolling mills where sheets or slabs are heated prior to rolling.

Scale Breaker

A scale breaker, also known as a descaler, is a piece of equipment used in the steel manufacturing process to remove scale from the surface of hot-rolled steel products. Scale refers to the iron oxide layer that forms on the surface of steel when it is heated to high temperatures during the manufacturing process.

Finish Rolling

Finish rolling, also known as final rolling, is the last stage in the hot rolling process of steel or other metals. It involves reducing the thickness of the material to its final desired dimensions and achieving the required surface finish.

Skin Pass Mill

A skin pass mill, also known as a temper mill or a rolling mill, is a specialized type of rolling mill used in the steel or metal industry to improve the surface finish and mechanical properties of cold-rolled steel coils or sheets. It operates after the cold rolling process and before further processing or coating.

Sheets, Plates, Coils Manufacturing Process

Inconel 718 Sheets, Plates, Coils Equivalent Material

STANDARD WERKSTOFF NR. UNS
Inconel 718 2.4668 N07718

Inconel 718 Sheets, Plates, Coils Chemical Composition

Grade C Mn Si S Cu Fe Ni Cr
718 0.08 max 0.35 max 0.35 max 0.015 max 0.30 max - 50.00 - 55.00 17.00 - 21.00

Inconel 718 Sheets, Plates, Coils Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset)
8.2 g/cm3 1350 °C (2460 °F) Psi – 1,35,000 , MPa – 930 Psi – 75,000 , MPa – 482 45 %

Buy High Quality ASTM B670 Alloy 718 Sheets.

Give us a call or send us an email to discuss how we can help you build your business. Working with such an esteemed client as you will make us happy.

Types Of Inconel 718 Sheets, Plates, Coils

Coils

Inconel 718 Coil

Strips

Inconel 718 Strip

Shim Sheet

Inconel 718 Shim Sheet

Foils

Inconel 718 Foils

We also supply Inconel 718 Sheet at the best price. You can check our latest Inconel Alloy 718 Plates price list. Contact Tricon Steel & Alloys today for a best offer & competitive quotation Of Alloy 718 Coils.
