ASTM A516 Grade 70 Manufacturers & Suppliers in India

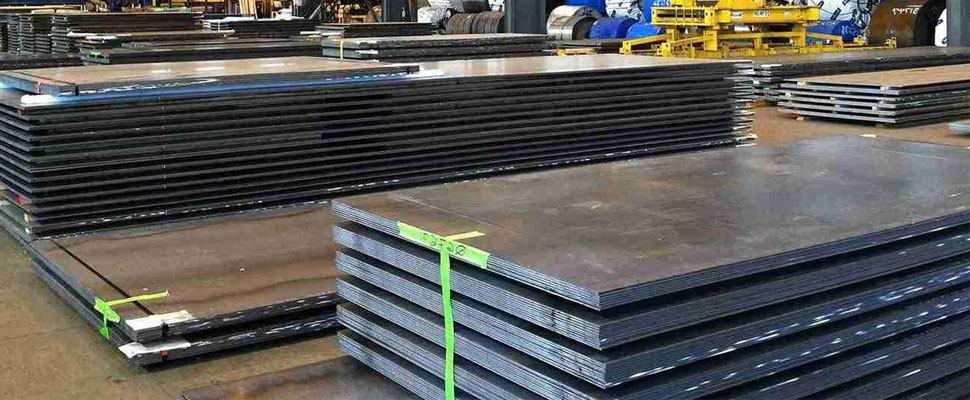

Tricon Steel & Alloys is a well-known supplier and manufacturer of ASTM A516 Grade 70 Plates. We aim to provide a top-quality range of carbon steel plates that offer reliable performance in demanding environments and the world's best service and supply chain. Tricon Steel & Alloys follows quality control measures in manufacturing to meet ASTM standards, providing customers with durable and reliable steel plates for their projects.

ASTM A516 Grade 70 Plate is composed of carbon (0.27-0.31%), manganese (0.79-1.3%), phosphorus (0.035%), sulfur (0.035%), silicon (0.13-0.45%), and traces of elements like copper, nickel, chromium, and molybdenum. These elements are carefully balanced to meet ASTM standards, ensuring the plates' suitability for pressure vessel and boiler applications.

Table Of Content

What is ASTM A516 Gr70 Carbon Steel Sheets, Plates, Coils
ASTM A516 Gr70 Specifications
ASTM A516 Gr70 Sheets, Plates, Coils Chemical Composition
ASTM A516 Gr70 Sheets, Plates, Coils Mechanical Properties
Types Of ASTM A516 Gr70 Sheets, Plates, Coils
Application Industries Of ASTM A516 Gr70 Sheets, Plates, Coils

ASTM A516 Grade 70 Plates offer high tensile strength (70 ksi or 485 MPa) and excellent toughness. These plates exhibit superior weldability and formability, making fabrication easier for various applications. Additionally, they maintain good corrosion resistance in harsh environments. The high strength-to-weight ratio of these plates allows for lighter constructions without compromising structural integrity, leading to cost savings and improved efficiency. These plates ensure safe operation in critical industrial settings, making them a preferred choice for engineers.

ASTM A516 Grade 70 Plates are machinable and weldable using conventional methods. Preheating is used to prevent cracking during welding. Post-weld heat treatment enhances toughness. Adequate cooling rates after welding minimize distortion. This makes these Carbon steel plates efficient and reliable.

We offer testing certificates for ASTM A516 Grade 70 Plate comprising MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third-Party Inspection Certificate. This guarantees 100% client satisfaction and assurance of the quality of our products.

ASTM A516 Grade 70 Plate finds uses in various industries such as oil and gas, petrochemical, power generation, and manufacturing of pressure vessels and boilers. It is utilized for constructing storage tanks, heat exchangers, reactors, and other critical components requiring high strength, toughness, and corrosion resistance.

ASTM A516 Gr70 Sheets Specifications

Specifications	ASTM A516 Gr. 70 / ASME A516 Grade 70
Dimensions	MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc
Size Range	Cold Rolled : 0.5-6.4 mm Hot Rolled : 3.0–10.0 mm
Thickness	0.3 mm to 120 mm
Width	1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length	2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
International Standard	ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510
Tolerances (width / thickness	EN 10258/ DIN 59381 EN 10151 EN 10088
Form	Sheet, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, soft annealed, descaled, sheared, annealed
Finish	2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, mirror etc.
Hardness	Half Hard, Soft, Hard, Quarter Hard, Spring Hard
Value Added Service	Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.
Profiling	Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting

ASTM A516 Gr70 Sheets, Plates, Coils Manufacturing Process

Reheating Furnace

A reheating furnace is a crucial component in the steel manufacturing process, particularly for hot rolling mills where sheets or slabs are heated prior to rolling.

Scale Breaker

A scale breaker, also known as a descaler, is a piece of equipment used in the steel manufacturing process to remove scale from the surface of hot-rolled steel products. Scale refers to the iron oxide layer that forms on the surface of steel when it is heated to high temperatures during the manufacturing process.

Finish Rolling

Finish rolling, also known as final rolling, is the last stage in the hot rolling process of steel or other metals. It involves reducing the thickness of the material to its final desired dimensions and achieving the required surface finish.

Skin Pass Mill

A skin pass mill, also known as a temper mill or a rolling mill, is a specialized type of rolling mill used in the steel or metal industry to improve the surface finish and mechanical properties of cold-rolled steel coils or sheets. It operates after the cold rolling process and before further processing or coating.

Sheets, Plates, Coils Manufacturing Process

ASTM A516 Gr70 Sheets, Plates, Coils Chemical Composition

Grade	C	Mn	P	S	Si
A516 Grade 70	0.27-0.31	0.79 – 1.30	0.035 max	0.035 max	0.13-0.45

ASTM A516 Gr70 Sheets, Plates, Coils Mechanical Properties

Grade	Thickness	Tensile Strength (mpa)	Yield Strength (mpa)	Elongation
A516 Grade 70	6-100mm	485-620	260 min	17-21%

ASTM A516 Gr70 Sheets, Plates, Coils Technical Information

Size Chart

Price List

Weight Calculator

Buy High Quality ASTM A516 Gr70 Sheets.

Give us a call or send us an email to discuss how we can help you build your business. Working with such an esteemed client as you will make us happy.

Please Call On +91 9892770720 Or Mail Us On info@triconsteels.com

Types Of ASTM A516 Gr70 Sheets, Plates, Coils

ASTM A516 GR70 PERFORATED SHEET

ASTM A516 GR70 CHEQUERED PLATE

ASTM A516 GR70 SHIM SHEET

ASTM A516 GR70 COIL

ASTM A516 GR70 STRIP

ASTM A516 GR70 HOT ROLLED SHEET

ASTM A516 GR70 COLD ROLLED PLATE

ASTM A516 GR70 FOILS

We also supply ASTM A516 Gr70 Sheets at the best price. You can check our latest ASTM A516 Gr70 Plates price list. Contact Tricon Steel & Alloys today for a best offer & competitive quotation Of ASTM A516 Gr70 Coils.
