Tricon Steel & Alloys proudly presents Stainless Steel 317/317L pipes, a premium product designed to meet the demanding requirements of various industrial applications. Renowned for their exceptional corrosion resistance and high-temperature strength, these pipes are a popular choice in industries such as chemical processing, petrochemicals, pharmaceuticals, and more.

Stainless Steel 317 is a molybdenum-bearing austenitic stainless steel that offers excellent resistance to various corrosive environments. Its enhanced corrosion resistance, coupled with its low carbon content, makes it suitable for applications where sensitization and subsequent corrosion may be a concern. Meanwhile, Stainless Steel 317L is the low-carbon version of 317, further reducing the risk of sensitization during welding. This dual-grade combination provides a versatile solution that is ideal for both high-temperature and corrosive environments.

One of the standout features of these pipes is their resistance to chemical attack, including the corrosive effects of acids such as sulfuric, phosphoric, and acetic acids. The addition of molybdenum enhances the alloy's ability to withstand pitting and crevice corrosion in chloride-containing environments, making it an excellent choice for marine and coastal applications.

The seamless construction of these pipes ensures uniformity in structure and eliminates the risk of weak points that may arise in welded pipes. This contributes to their overall durability and longevity in service. Furthermore, the pipes exhibit outstanding formability and weldability, facilitating easy installation and maintenance processes.

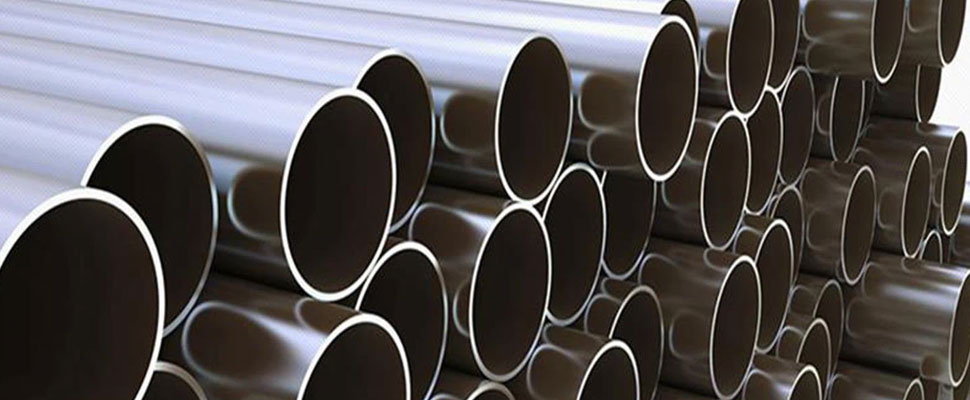

Stainless Steel 317 / 317L Pipe

Tricon Steel & Alloys ensures that the Stainless Steel 317/317L pipes meet the highest quality standards. Rigorous testing and inspection procedures are employed to guarantee product integrity, dimensional accuracy, and adherence to industry specifications.

The applications of Stainless Steel 317/317L pipes are diverse, ranging from chemical processing and petrochemical plants to pharmaceutical and food processing industries. Their ability to withstand extreme temperatures and harsh corrosive environments makes them indispensable in critical processes where reliability is paramount.

317 Stainless Steel Pipe Specifications

Pipe Specifications ASTM A312, A358 / ASME SA312, SA358
Tube Specifications ASTM A213, A269, A249, A511, A554 / ASME SA213, SA269, SA249, SA511, SA554
Dimensions ANSI/ASME B36.19M, ANSI/ASME B36.10M
Seamless Pipe & Tube Size 1/2″ NB – 16″ NB
Welded Pipe & Tube Size 1/8″NB TO 30″NB IN
EFW Pipe & Tube Size 6″ NB – 24″ NB
Tube Outside Diameter 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock
Thickness 0.35 mm – 50 mm
Specialized in Large Diameter Pipe Size
Schedule SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, SCH 80S, SCH60, SCH80, SCH120, SCH140, SCH160, SCH XXS, SCH XS
Type Seamless Pipes, ERW Pipes, Welded Pipe, Fabricated Pipes, Electro polished Pipe, Polished Pipe, Hollow Pipes
Form Round, Square, Hydraulic, U Shape, Rectangular, Pan Cake Coils, Coiled, Hex, Honed, Etc
Length Single Random, Double Random & Required Length.
End Plain End, Beveled End, Treaded End

317L Stainless Steel Pipe Manufacturing Process

The Rolling and Welding Stage

To begin our process, we first need to go through the rolling and welding stage. The stainless steel is placed through a checking process and cut at the edges in this stage.

Cleaning and Warming Stage

The rolled stainless steel pipes thus manufactured are cut to the required lengths depending upon the industrial demand.

Cold-Drawing Stage

Sometimes, the required size isn’t obtained when the steel is brought through the mill directly. When using the cold-drawing process, the desired size is achieved when the pipes and tubing are coated with oxalic and soap solution and dragged over die plugs—the oxalic and soap solution help reduce friction when going through the cold cycle.

The Finishing Process

The final process is the finisher. Once the process of manufacturing stainless steel pipes and tubing is completed, you’ll now have to take them to a jet printer.

Pipe Manufacturing Process

Stainless Steel 317L Pipe Equivalent Material

STANDARD WERKSTOFF NR. UNS JIS EN
SS 317 1.4449 S31700 SUS 317 -
SS 317L 1.4438 S31703 SUS 317L X2CrNiMo18-15-4

SS 317 Pipe Chemical Composition

Grade C Mn Si P S Cr Mo Ni Fe
SS 317 0.08 max 2.0 max 1.0 max 0.045 max 0.030 max 18.00 - 20.00 3.00 - 4.00 11.00 - 15.00 57.845 min
SS 317L 0.035 max 2.0 max 1.0 max 0.045 max 0.030 max 18.00 - 20.00 3.00 - 4.00 11.00 - 15.00 57.89 min

317L Stainless Steel Pipes Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
7.9 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

317 Stainless Steel Pipe Technical Information

Buy High Quality ASTM A312 TP317 Stainless Steel Pipes.

Give us a call or send us an email to discuss how we can help you build your business. Working with such an esteemed client as you will make us happy.

Types Of Stainless Steel 317 Pipes

Seamless Pipe

SS 317 Seamless Pipe

Welded Pipe

SS 317 Welded Pipe

ERW Pipe

SS 317 ERW Pipe

EFW Pipe

SS 317 EFW Pipe

Polished Pipe

SS 317 Polished Pipe

Square Pipe

SS 317 Square Pipe

Round Pipe

SS 317 Round Pipe

Hollow Pipe

SS 317 Hollow Pipe

We also supply 317 Stainless Steel Pipe at the best price. You can check our latest 317L Stainless Steel Pipes price list. Contact Tricon Steel & Alloys today for a best offer & competitive quotation Of 317 Stainless Steel Pipe.

What Industries Use 317 / 317L Stainless Steel Pipe ?
