ASTM A234 is a standard specification developed by the American Society for Testing and Materials (ASTM) for a range of wrought alloy steel fittings used in pressure piping systems. Specifically, ASTM A234 Alloy Steel WP9 Pipe Fittings are designed for seamless and electric fusion-welded construction in various industries where high-temperature and corrosive environments are prevalent. Here, we delve into key aspects of these fittings, including their composition, mechanical properties, applications, and manufacturing processes.

Composition of ASTM A234 Alloy Steel WP9 Pipe Fittings:

The ASTM A234 Alloy Steel WP9 Pipe Fittings are primarily composed of chromium and molybdenum, which impart enhanced corrosion resistance and high-temperature strength to the material. The chemical composition of WP9 includes elements like carbon, manganese, phosphorus, sulfur, silicon, nickel, chromium, molybdenum, and vanadium, all within specified limits to ensure the desired mechanical properties.

Mechanical Properties of ASTM A234 Alloy Steel WP9 Pipe Fittings:

The mechanical properties of ASTM A234 Alloy Steel WP9 Pipe Fittings are critical for their performance in demanding applications. The fittings exhibit high tensile strength, yield strength, and hardness, making them suitable for service in environments with elevated temperatures and pressure levels. The specified mechanical properties are determined through rigorous testing procedures under ASTM standards.

Manufacturing Processes of ASTM A234 Alloy Steel WP9 Pipe Fittings:

Manufacturing of ASTM A234 Alloy Steel WP9 Pipe Fittings involves processes like hot forming and heat treatment to achieve the desired mechanical properties. The fittings can be seamlessly fabricated through methods such as forging, extrusion, or rolling. Subsequent heat treatment processes, including normalization or quenching and tempering, are employed to refine the microstructure and enhance the mechanical properties.

Applications of ASTM A234 Alloy Steel WP9 Pipe Fittings:

These fittings find widespread applications in industries such as oil and gas, petrochemical, power generation, and chemical processing, where high-temperature and high-pressure conditions are encountered. ASTM A234 Alloy Steel WP9 Pipe Fittings are commonly used in pipelines, refineries, power plants, and other critical systems where the corrosion resistance and strength of alloy steel are essential.

Types of ASTM A234 Alloy Steel WP9 Pipe Fittings:

The ASTM A234 Alloy Steel WP9 Pipe Fittings encompass a variety of types, including but not limited to elbows, tees, reducers, caps, and stub ends. These fittings come in different sizes and thicknesses to suit the specific requirements of different piping systems. The fittings are designed to facilitate smooth flow, minimize pressure drops, and ensure the integrity of the overall piping network.

Compliance and Testing:

To ensure the quality and reliability of ASTM A234 Alloy Steel WP9 Pipe Fittings, manufacturers adhere to stringent testing procedures outlined in the ASTM A234 standard. Common tests include tensile testing, impact testing, hardness testing, and non-destructive examinations like ultrasonic testing and radiographic testing. Compliance with these standards ensures that the fittings meet the necessary specifications for safe and efficient operation.

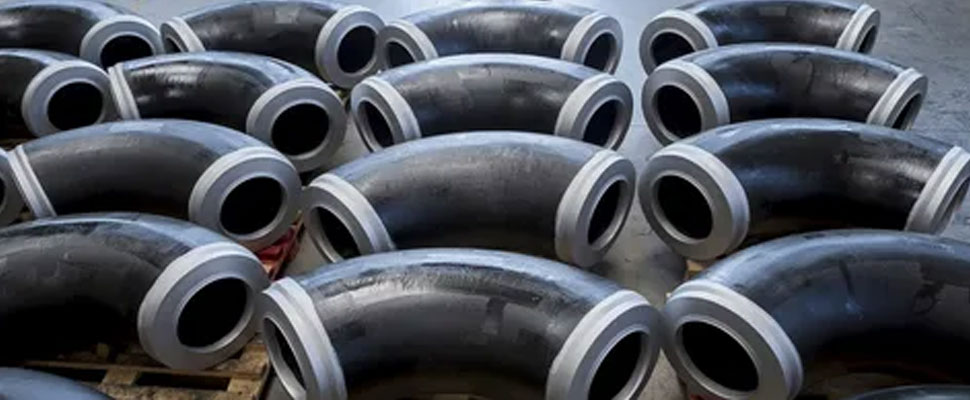

Alloy Steel Gr WP9 Pipe Fittings

Tricon Steel and Alloys is your premier destination for high-quality ASTM A234 Alloy Steel WP9 Pipe Fittings in Mumbai, India. As a leading manufacturer and supplier, we take pride in delivering top-notch products that meet and exceed industry standards. Our extensive range of ASTM A234 Alloy Steel WP9 Pipe Fittings is designed to cater to diverse industrial applications with precision and reliability. Committed to excellence, we ensure strict quality control measures and use cutting-edge technology to manufacture fittings that guarantee durability and performance. Trust Tricon Steel and Alloys for all your Alloy Steel WP9 Pipe Fittings needs, and experience the difference of working with a trusted leader in the industry.

Alloy Steel Gr WP9 Pipe Fittings Specifications

Specifications ASTM A234 / ASME SA234
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Size Seamless Butt Weld Fittings: 1/2" - 10"
Welded Butt Weld Fittings: 1/2" - 48"
Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A234 Alloy Steel Buttweld Fitting
Type DN15-DN1200
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom MSS Sp-43 Alloy Steel Pipe Fitting
Elbows Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D.
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Connection Welding
Manufacturing process Forge, Cast, Push, Press, etc.
Key markets and industries
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Petrochemicals and acids.
  • Nuclear power (mostly seamless).
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized manufacturer of 90 Deg Elbows, 45 Deg Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend

Alloy Steel WP9 Pipe Fittings Manufacturing Process

Hot forming or Extrusion Method

By forcing a heated billet through a molded die's opening, forged parts are produced by the process of hot extrusion. This article discusses lubricated versus non-lubricated hot extrusion.

Hydraulic Bulge method – Cold forming

Internal pressure and axial feeding are used in hydroforming tube to create the perfect sort of tube. The operation's results can be predicted using the finite-element method.

Deep Drawing Method for caps

Some of the most widely used techniques for creating caps involve cutting the plate into a circle and shaping it with a deep draw. The process of deep drawing sheet metal storage, also known as blanks, creates a circular or irregular shape that is longer than half of its diameter.

Flare Method for Stub ends

The flaring procedure is used to create lap joint flanges and stub ends. A flare or flange face with a cutout called the flow end. Welding is frequently used to generate stub ends after the forge block has been machined to the desired size.

Pipe Fittings Manufacturing Process

Alloy Steel Grade WP9 Pipe Fittings Chemical Composition

Grade C Mn Si S P Cr Mo
A234 WP9 ≤0.15 ≤0.6 1.00 ≤0.03 ≤0.03 8-10 0.90-1.10

Alloy Steel WP9 Butt weld Fittings Mechanical Properties

Grade Tensile Strength (Mpa) Yield Strength (Mpa) Elongation %
A234 WP9 380 min 585 min ≥30

Buy High Quality ASTM A234 Alloy Steel WP9 Pipe Fittings.

Give us a call or send us an email to discuss how we can help you build your business. Working with such an esteemed client as you will make us happy.

Types Of Chrome Moly WP9 Pipe Fittings

Elbow

Alloy Steel Gr WP9 Elbow

Tee

Chrome Moly WP9 Tee

Buttweld Cross

Alloy Steel WP9 Cross

Reducer

CrMo WP9 Reducer

Stub End

High Pressure Steel WP9 Stub End

Pipe Cap

Alloy Steel WP9 Pipe Cap

Bend

Alloy Steel WP9 Bend

Pipe Nipples

Alloy Steel WP9 Pipe Nipples

We also supply Alloy Steel WP9 Pipe Fittings at the best price. You can check our latest WP9 Alloy Steel Butt weld Pipe Fittings price list. Contact Tricon Steel & Alloys today for a best offer & competitive quotation Of Alloy Steel WP9 Pipe Fittings.
