Premium Quality Stainless Steel 317 and 317L Flanges Supplier from India Tricon Steel & Alloys. These Products are high-performance components known for their exceptional corrosion resistance and durability in demanding environments.

Stainless Steel 317 FlangesThese: These flanges are prepared from a chromium-nickel-molybdenum alloy, enhancing their resistance to corrosive substances such as acids, chemicals, and chlorides, making them suitable for use in harsh industrial settings. Including molybdenum further improves their resistance to pitting and crevice corrosion, ensuring prolonged service life even in challenging conditions.

One of the key Benefits of Stainless Steel 317L Flanges is their versatility. They are available in various types, including slip-on, weld neck, blind, socket weld, and lap joint flanges. They cater to diverse application requirements across industries such as chemical processing, petrochemical, pharmaceutical, and food processing. These flanges offer ease of installation and provide a secure, leak-proof connection, which is critical for maintaining the integrity of piping systems in demanding applications.

SS 317L corrosion resistance and versatility: Stainless Steel 317L Flanges exhibit excellent mechanical properties, including high tensile strength. They can withstand elevated temperatures without compromising their structural integrity, making them suitable for high-temperature and cryogenic applications.

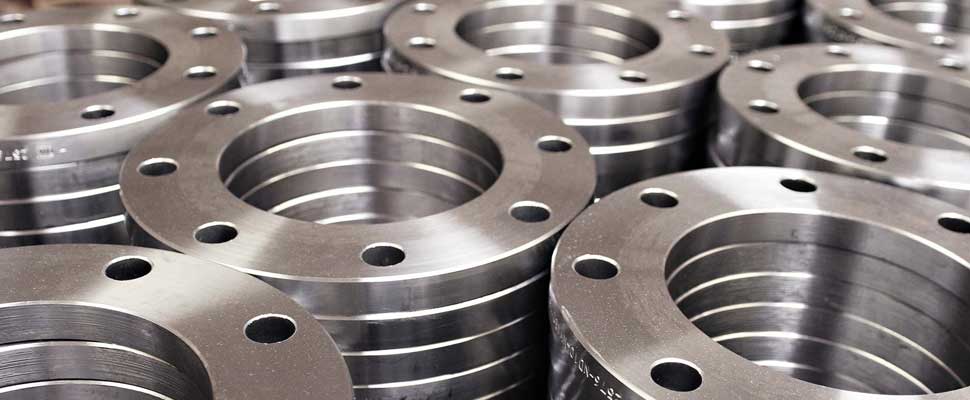

Stainless Steel 317 / 317L Flanges

Stainless Steel 317/317L Flanges adhere to industry standards such as ASTM A182, ASME B16.5, and ASME B16.47, ensuring quality, dimensional accuracy, and compatibility with piping systems. Testing is crucial to ensure the quality and reliability of SS 317 flanges. Various tests are conducted during manufacturing to assess their performance characteristics and adherence to industry standards. These tests may include hydrostatic testing, ultrasonic testing, radiographic testing, and visual inspection, among others. Each test is designed to detect defects or irregularities in the flanges, ensuring they meet the specified requirements for strength, integrity, and dimensional accuracy.

SS 317 Flanges Specifications

Standard ASTM A182 / ASME SA182
Dimensions ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Size 1/2" (15 NB) to 48" (1200NB), DN10~DN5000
Pressure Rating Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
Pressure Calculation in DIN 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
JIS 16 K, 5K, 10 K, 20 K, 30 K, 40 K, 63 K
Flange Connection / Flange Face Type Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove, Flange Pipe.
Types of Flanges Threaded / Screwed / Forged / Plate
Coating Yellow Transparent, Zinc Plated, Anti-rust Paint, Oil Black Paint, Cold and Hot Dip Galvanized
Test Of Flange Direct-reading Spectrograph, Ultrasonic flaw detector, Magnetic particle detector, X-ray detector, Hydrostatic testing machine.
Production Technique Used Heat treated, Forged and Machined
Equipment Press machine, Bending machine, Pushing Machine, Sand-blasting machine, electric bevelling machine etc.
Test Certificates EN 10204/3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report, etc

317L Stainless Steel Flanges Manufacturing Process

Flange Forging

Compared to cast flanges, forged flanges typically contain less carbon and are less likely to corrode. Forgings have superior mechanical qualities, a thicker structure, and a more streamlined shape.

Heat Treatment

The flange is undergoing heat treatment; the forging process has the slowest total cooling pace, while the standardizing and reducing processes have faster cooling speeds. The flange is undergoing heat treatment; the forging process has the slowest total cooling pace, while the standardizing and reducing processes have faster cooling speeds.

Forging Rolling

Roll forging is a forging technique that shapes a metal object by using opposing rolls. Although roll forging employs rolls to accomplish the desired material deformation, it is categorized as a metal forging procedure rather than a rolling procedure.

Rust Prevention

For steel flanges, conventional rust protection treatments include hot dip galvanizing, electro galvanizing (cold), varnish paint coating, black paint coating, black phosphating treatment, yellow (golden) paint coating, etc.

Flanges Manufacturing Process

Stainless Steel 317L Flanges Equivalent Material

STANDARD UNS WNR. JIS EN
SS 317 S31700 1.4449 SUS 317
SS 317L S31703 1.4438 SUS 317L X2CrNiMo18-15-4

SS 317 Flanges Chemical Composition

Grade C Mn Si P S Cr Mo Ni Fe
SS 317 0.08 max 2.0 max 1.0 max 0.045 max 0.030 max 18.00 – 20.00 3.00 – 4.00 11.00 – 15.00 57.845 min
SS 317L 0.035 max 2.0 max 1.0 max 0.045 max 0.030 max 18.00 – 20.00 3.00 – 4.00 11.00 – 15.00 57.89 min

317L Stainless Steel Flanges Mechanical Properties

Density Melting Point Tensilee Strength Yield Strength (0.2%Offset) Elongation
7.9 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

Buy High Quality ASTM A182 317 Stainless Steel Flanges.

Give us a call or send us an email to discuss how we can help you build your business. Working with such an esteemed client as you will make us happy.

Types Of Stainless Steel 317 Flanges

Slip on Flanges

317 Stainless Steel Slip On Flanges

Weld Neck Flanges

317L SS Weld Neck Flange

Socket weld Flanges

SS 317 Socket weld Flanges

Threaded Flanges

Stainless Steel 317L Threaded Flanges

Blind Flanges

317 Stainless Steel Blind Flange

Lap Joint Flanges

SS 317 Lap Joint Flanges

Forged Flanges

SS 317L Forged Flanges

Spectacle Blind Flange

SS 317 Spectacle Blind Flange

We also supply 317 Stainless Steel Flanges at the best price. You can check our latest 317L Stainless Steel Pipe Flanges price list. Contact Tricon Steel & Alloys today for a best offer & competitive quotation Of 317 Stainless Steel Flanges.

What Industries Use 317 / 317L Stainless Steel Flanges ?
