What are Nitronic 60 (XM 19) Bars??

Nitronic 60, also known as XM 19, is a high-performance austenitic stainless steel known for its excellent strength and corrosion resistance. It falls under the category of superalloys due to its outstanding mechanical properties even at elevated temperatures. Nitronic 60 bars are a popular form of this material, widely used in various industries for their exceptional combination of strength, toughness, and corrosion resistance.

Features of Nitronic 60 (XM 19) Bars:

  • High Strength: Nitronic 60 bars offer impressive strength levels, making them suitable for demanding applications where structural integrity is crucial.

  • Corrosion Resistance: These bars exhibit excellent corrosion resistance in harsh environments, including acidic and chloride-rich conditions, making them ideal for marine and chemical processing industries.

  • Excellent Toughness: Nitronic 60 bars maintain toughness even at cryogenic temperatures, ensuring reliable performance in extreme conditions.

  • Wear Resistance: They possess good wear resistance, making them suitable for applications involving abrasive wear and galling.

  • Machinability: Nitronic 60 bars have good machinability despite their high strength, allowing for ease of fabrication and machining into various components.

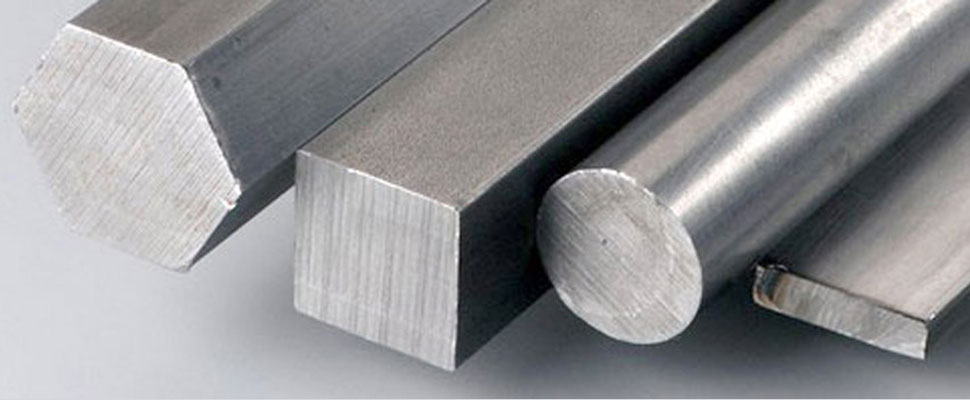

Nitronic 60 (XM 19) Bars

Sizes of Nitronic 60 Bars:Nitronic 60 bars are available in a variety of sizes and forms, including round bars, square bars, hexagonal bars, and flat bars, to suit different application requirements. Common diameter ranges for round bars are typically between 6 mm to 200 mm.

Nitronic 60 Bars Specifications

Specifications ASTM A193 GRD B8S, ASTM A194, ASTM A276, ASTM A479, AMS 5848, ASME SA 193, ASME SA 194, ASME SA 479, ASME SA 479 GRD B8S
Dimension Standard EN, DIN, JIS, ASTM, BS, ASME, AISI
Bar Diameter 3 ~ 800mm
Hex Bar size 2-100mm A/F
Flat bar size Thickness: 2 -100mm.
Width: 10 to 500mm.
Square bar size 4 to 100mm
Rectangular Bars Size: 33 x 30mm to 295 x 1066mm.
Thickness: 3.0 to 12.0mm.
Hollow Bars 32mm OD x 16mm ID to 250mm OD x 200mm ID)
Billet Size 1/2 to 495mm Diameter
Finish Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black
Tolerance H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients requirements
Bar Surface Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline
Rolled Bars Condition Hardened & tempered, annealed
Cold Rolled Bar Technique Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod
Form Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc.

Nitronic 60 Manufacturing Process

Melting

The first step in the process is melting raw materials in an electric furnace. These raw materials are typically iron ore, chromium, nickel, and other elements in exact amounts.

Hot Rolling

After being heated, the billets are shaped into long, thin rods by going through a series of rolling mills. Because the metal is heated above its recrystallization temperature during this operation, it is known as hot rolling.

Pickling

The pickling process is used to the bars in order to eliminate any oxide, scale, or other surface contaminants. Usually, an acid solution is used for this.

Cutting

Lastly, shearing machines or other cutting techniques are used to cut the rods to the required length.

Bars Manufacturing Process

Nitronic 60 Round Bars Equivalent Material

STANDARD UNS WNR.
Nitronic 60 UNS S21800 -

Composition of Nitronic 60 (XM 19) Bars:

Nitronic 60 bars typically contain high levels of chromium, nickel, manganese, and nitrogen, along with small additions of molybdenum and silicon. This composition contributes to the material's remarkable combination of mechanical properties and corrosion resistance.

Grade C Mn Si P S Cr Ni
Nitronic 60 0.10 max 7.0 - 9.0 max 3.5 - 4.5 max 0.04 max 0.03 max 16.0 - 18.0 max 8.0 - 9.0 max

Nitronic 60 Round Bars Mechanical Properties

Grade Density Melting Point Yeild Strength Tensile Strength Elongation Rockwell Hardness
Nitronic 60 8.0 g/cm3 1375 °C Min 345 Mpa Min 655 Mpa 35% Min 241 Max

Buy High Quality Nitronic 60 Round Bars.

Give us a call or send us an email to discuss how we can help you build your business. Working with such an esteemed client as you will make us happy.

Types Of Nitronic 60 Bars

Round Bar

Nitronic 60 Round Bar

Square Bars

Nitronic 60 Square Bar

Flat Bars

Nitronic 60 Flat Bar

Hex Bars

Nitronic 60 Hex Bar

Bright Bar

Nitronic 60 Bright Bar

Polished Bars

Nitronic 60 Polished Bar

Threaded Rod

Nitronic 60 Threaded Rod

Rectangular Bar

Nitronic 60 Rectangular Bar

We also supply Nitronic 60 Round Bars at the best price. You can check our latest Nitronic 60 Bars price list. Contact Tricon Steel & Alloys today for a best offer & competitive quotation Of Nitronic 60 Bars.

Applications of Nitronic 60 (XM 19) Bars:

  • Marine Industry: Due to its superior corrosion resistance, Nitronic 60 bars are extensively used in marine applications such as marine shafts, propeller shafts, and fasteners.

  • Chemical Processing: The excellent corrosion resistance of Nitronic 60 bars makes them suitable for use in chemical processing equipment like pumps, valves, and fittings.

  • Aerospace : In aerospace applications, Nitronic 60 bars find use in structural components, fasteners, and engine parts where high strength and corrosion resistance are required.

  • Automotive: They are utilized in automotive exhaust systems, engine components, and suspension systems due to their combination of strength, toughness, and resistance to exhaust gases.

  • Petrochemical Industry: Nitronic 60 bars are employed in petrochemical plants for valves, fittings, and piping systems subjected to corrosive environments.

  • Medical Devices: In medical applications, Nitronic 60 bars are used for surgical instruments, orthopedic implants, and medical equipment due to their biocompatibility and corrosion resistance.

Nitronic 60 bars continue to be a preferred choice across various industries where reliability, durability, and performance are paramount.
