What is Stainless Steel 316 / 316L / 316H?

Stainless Steel 316, 316L, and 316H Bars are members of the renowned 300 series, distinguished by their exceptional corrosion resistance and high-temperature strength. These bars are forged from an alloy composed mainly of iron, chromium, nickel, and molybdenum, creating a robust material that thrives in harsh environments.

Features of SS 316 Bars:

Stainless Steel 316 Bars stand out for their remarkable features, making them a preferred choice across industries. Their corrosion resistance, especially in aggressive environments, is exceptional. Additionally, SS 316 Bars offer superb weldability and formability, allowing for versatile applications. The inclusion of molybdenum enhances their resistance to pitting and crevice corrosion.

Features of SS 316L Bars:

SS 316L Bars share similarities with SS 316 but are distinguished by their lower carbon content. This modification results in improved weldability, as lower carbon reduces the risk of sensitization and subsequent corrosion. Stainless Steel 316L Bars are ideal for applications requiring extensive welding or exposure to high-temperature conditions.

Features of SS 316H Bars:

Stainless Steel 316H Bars are heat-resistant variants of the 316 series, designed for elevated temperature applications. With a higher carbon content, these bars exhibit superior strength at high temperatures, making them suitable for challenging industrial environments. The enhanced tensile strength and creep resistance of SS 316H Bars set them apart in applications involving sustained high temperatures.

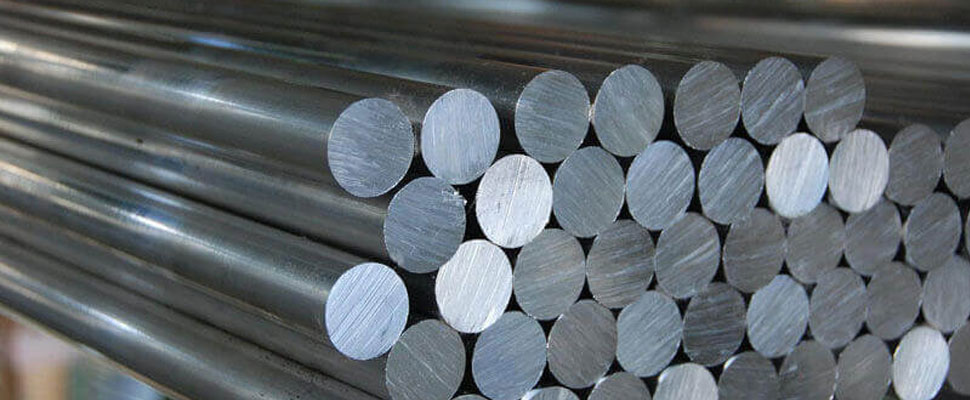

Stainless Steel 316 / 316L / 316H Bars

Sizes of SS 316/316L/316H Bars:

SS 316, 316L, and 316H Bars are fabricated in a range of sizes to accommodate different requirements. Whether it's a small-scale project or a large industrial application, the availability of various sizes ensures flexibility in design and construction.

316 / 316L / 316H Stainless Steel Bars Specifications

Specifications ASTM A276 / A479, ASME SA276 / A479
Dimension Standard EN, DIN, JIS, ASTM, BS, ASME, AISI
Bar Diameter 3 ~ 800mm
Hex Bar size 2-100mm A/F
Flat bar size Thickness: 2 -100mm.
Width: 10 to 500mm.
Square bar size 4 to 100mm
Rectangular Bars Size: 33 x 30mm to 295 x 1066mm.
Thickness: 3.0 to 12.0mm.
Hollow Bars 32mm OD x 16mm ID to 250mm OD x 200mm ID)
Billet Size 1/2 to 495mm Diameter
Finish Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black
Tolerance H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients requirements
Bar Surface Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline
Rolled Bars Condition Hardened & tempered, annealed
Cold Rolled Bar Technique Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod
Form Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc.

316 / 316L / 316H Stainless Steel Bars Manufacturing Process

Melting

The first step in the process is melting raw materials in an electric furnace. These raw materials are typically iron ore, chromium, nickel, and other elements in exact amounts.

Hot Rolling

After being heated, the billets are shaped into long, thin rods by going through a series of rolling mills. Because the metal is heated above its recrystallization temperature during this operation, it is known as hot rolling.

Pickling

The pickling process is used to the bars in order to eliminate any oxide, scale, or other surface contaminants. Usually, an acid solution is used for this.

Cutting

Lastly, shearing machines or other cutting techniques are used to cut the rods to the required length.

Bars Manufacturing Process

Stainless Steel 316 / 316L / 316H Round Bars Equivalent Material

STANDARD UNS WNR. AFNOR EN JIS BS GOST
SS 316 S31600 1.4401 / 1.4436 Z7CND17‐11‐02 X5CrNiMo17-12-2 / X3CrNiMo17-13-3 SUS 316 316S31 / 316S33 -
SS 316L S31603 1.4404 / 1.4435 Z3CND17‐11‐02 / Z3CND18‐14‐03 X2CrNiMo17-12-2 / X2CrNiMo18-14-3 SUS 316L 316S11 / 316S13 03Ch17N14M3 / 03Ch17N14M2
SS 316H S31609 1.4401 - - - - -

SS 316 / 316L / 316H Round Bars Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
SS 316 0.08 max 2 max 1.0 max 0.045 max 0.030 max 16.00 - 18.00 2.00 - 3.00 11.00 - 14.00
SS 316L 0.035 max 2.0 max 1.0 max 0.045 max 0.03 max 16 – 18 2.00 - 3.00 10.00 - 14.00
SS 316H 0.10 max 2.0 max 0.75 max 0.045 max 0.030 max 16 – 18 2.00 - 3.00 10.00 - 14.00

316 / 316L / 316H Stainless Steel Round Bars Mechanical Properties

Grade Density Melting Point Tensilee Strength Yield Strength (0.2%Offset) Elongation
SS 316/316L 8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 40 %
SS 316H 8.0 g/cm3 1400 °C (2550 °F) Psi – 75000, MPa – 515 Psi – 30000, MPa – 205 35 %

Buy High Quality 316 / 316L / 316H Stainless Steel Round Bars.

Give us a call or send us an email to discuss how we can help you build your business. Working with such an esteemed client as you will make us happy.

Types of SS 316/316L/316H Bars:

These stainless steel bars are available in various types, catering to diverse industrial needs. Common types include round bars, square bars, hexagonal bars, and flat bars. Each type possesses unique characteristics, allowing for optimal performance in specific applications.

Round Bar

SS 316 / 316L / 316H Round Bar

Square Bars

SS 316 / 316L / 316H Square Bar

Flat Bars

SS 316 / 316L / 316H Flat Bar

Hex Bars

SS 316 / 316L / 316H Hex Bar

Bright Bar

SS 316 / 316L / 316H Bright Bar

Polished Bars

SS 316 / 316L / 316H Polished Bar

Threaded Rod

SS 316 / 316L / 316H Threaded Rod

Rectangular Bar

SS 316 / 316L / 316H Rectangular Bar

We also supply 316 Stainless Steel Round Bars at the best price. You can check our latest 316L Stainless Steel Bars price list. Contact Tricon Steel & Alloys today for a best offer & competitive quotation Of 316 / 316L / 316H Stainless Steel Bars.

Applications of SS 316/316L/316H Bars: Bars ?

The versatility of Stainless Steel 316, 316L, and 316H Bars makes them indispensable in numerous applications. They find extensive use in the chemical industry, marine engineering, petrochemical plants, and pharmaceuticals. SS 316 Bars are commonly employed in structural components, while the heat-resistant Stainless Steel 316H Bars are vital in high-temperature processing units. Stainless Steel 316L Bars, with their enhanced weldability, are preferred in applications requiring intricate welding.
